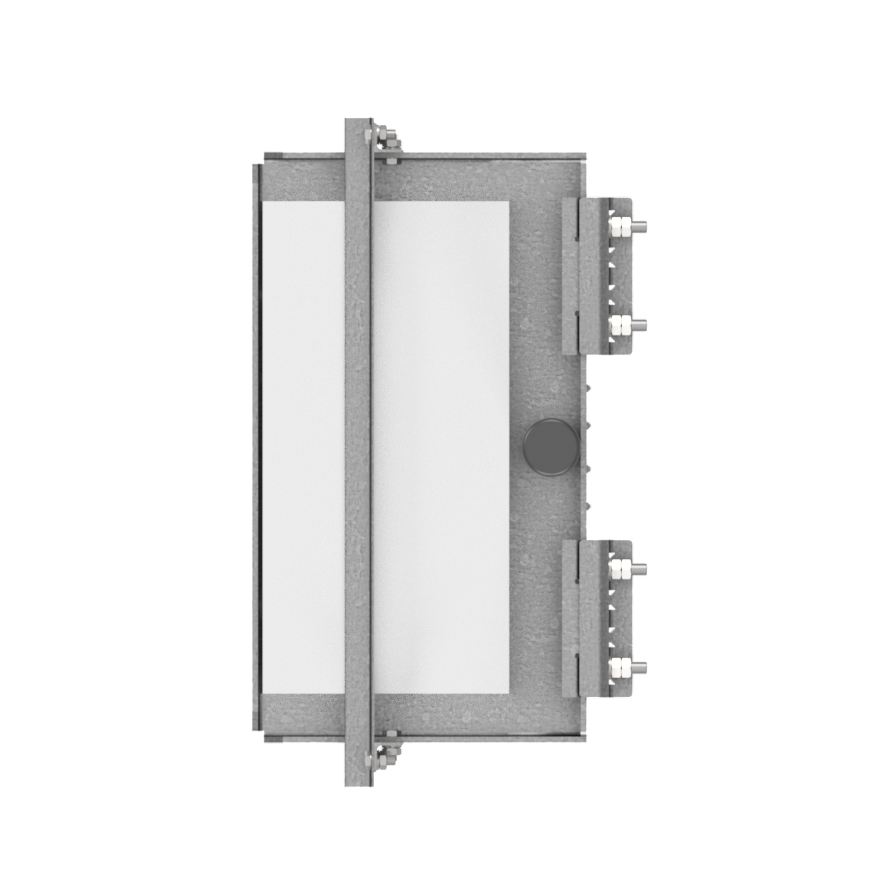

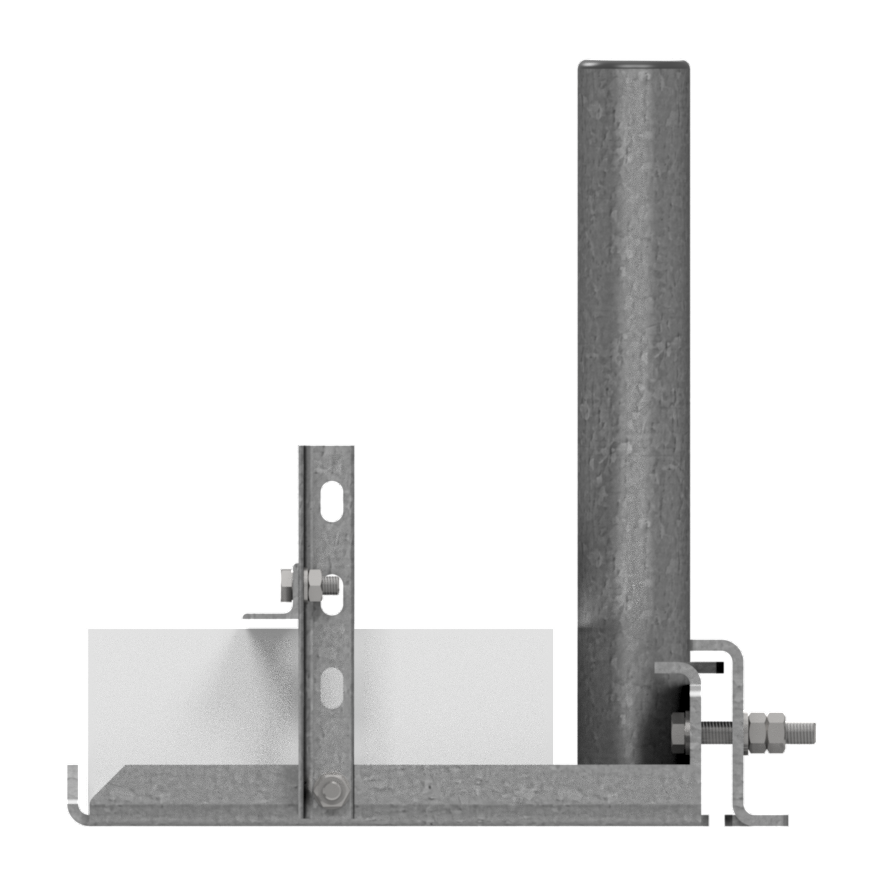

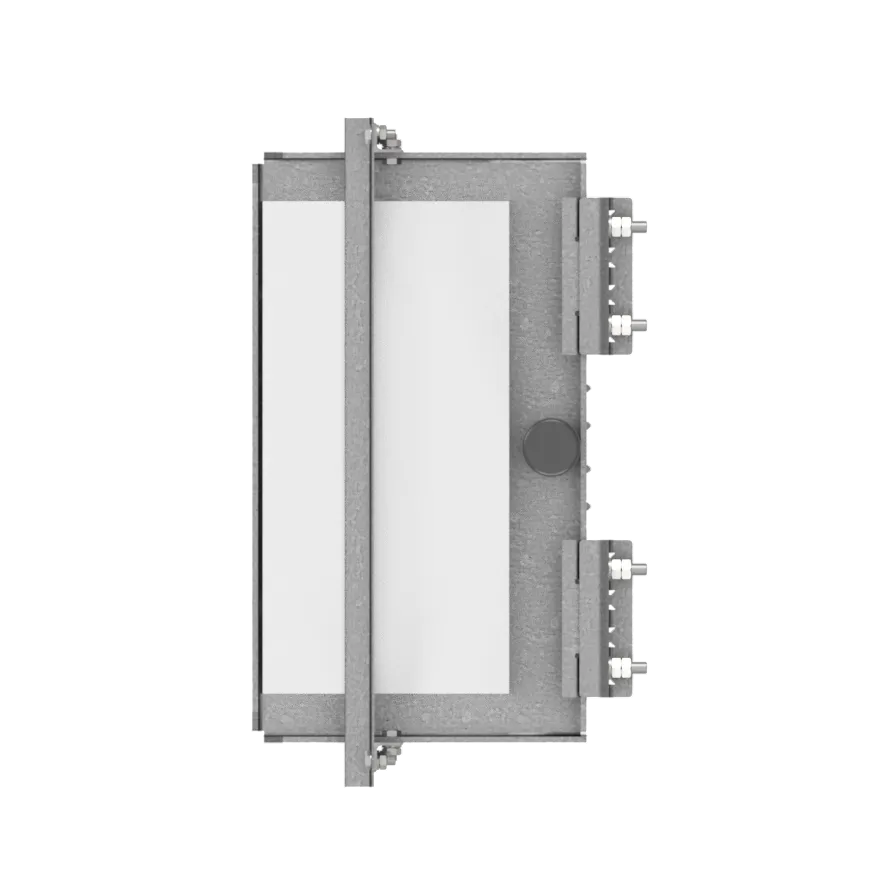

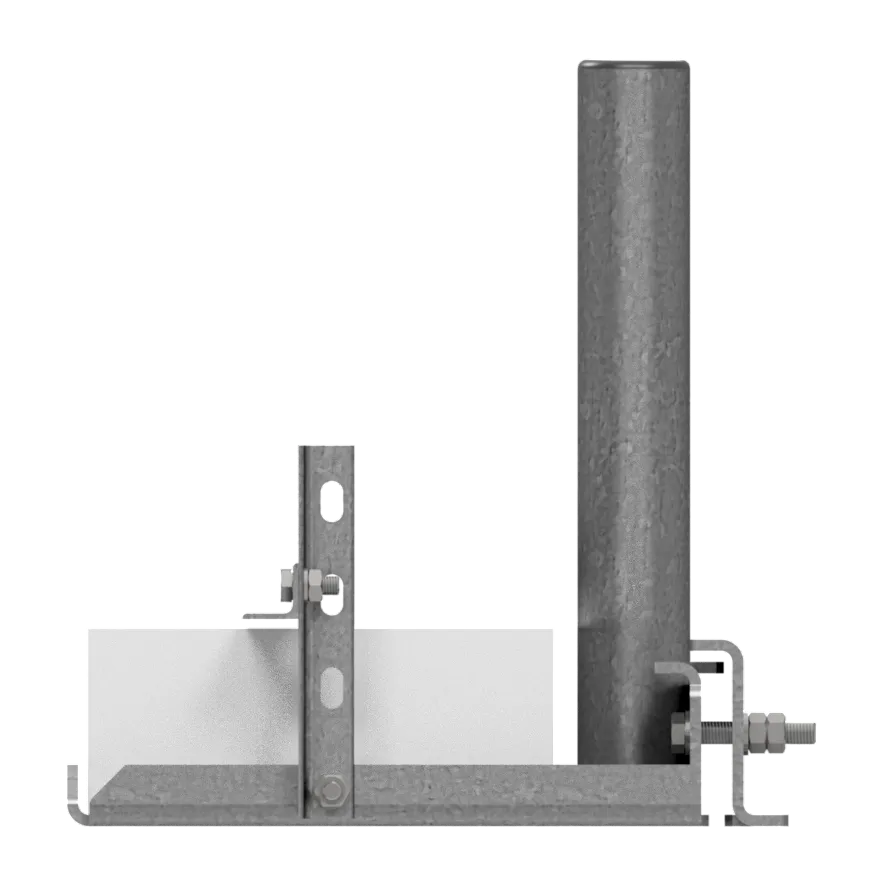

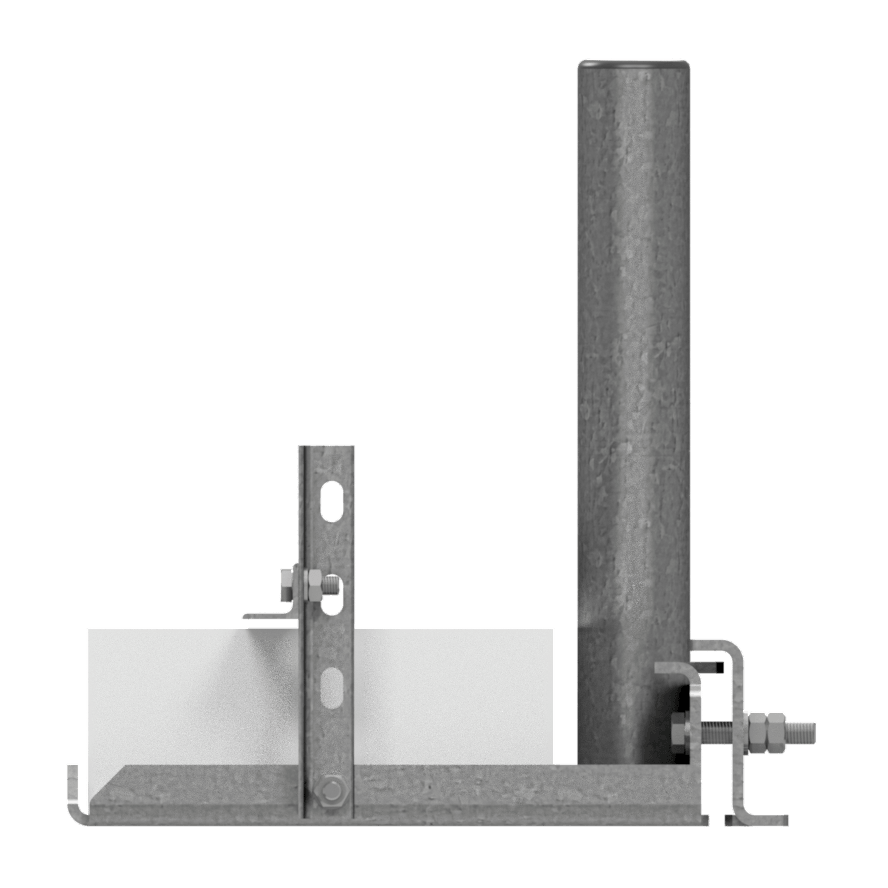

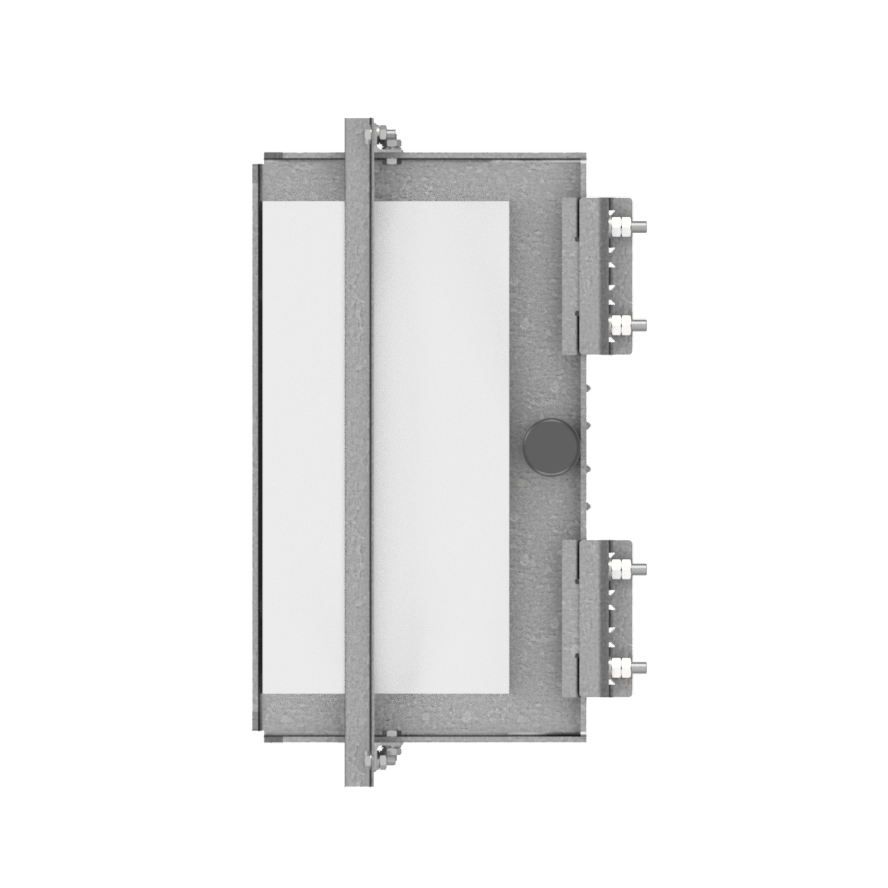

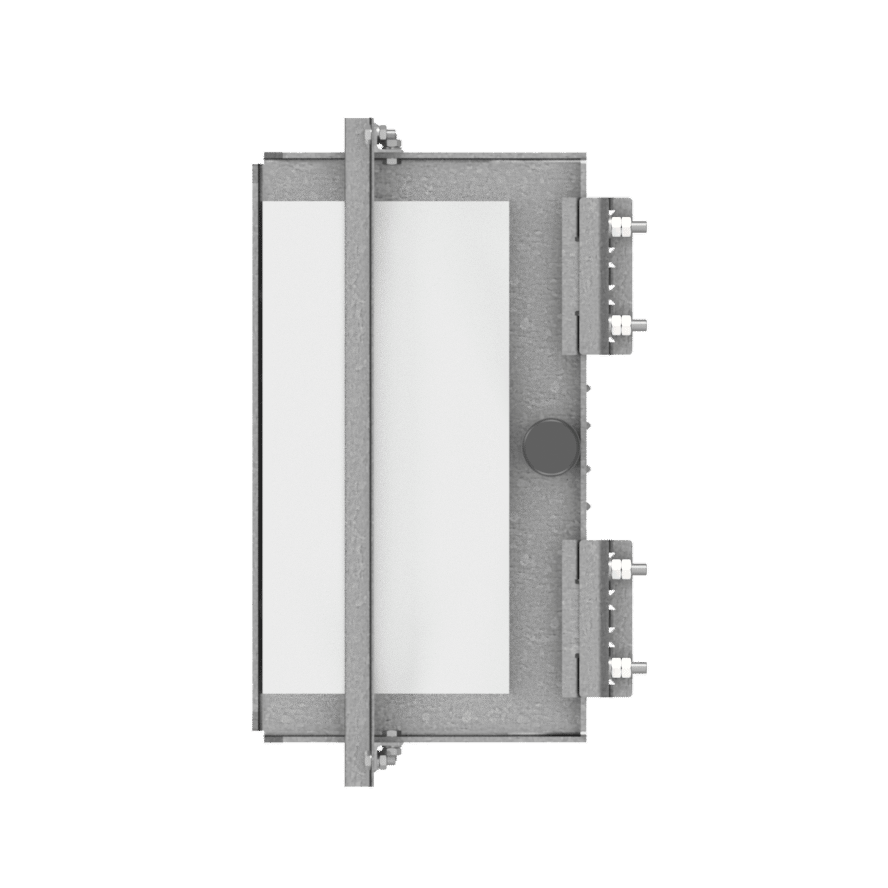

MBG-POS22 Standing Seam Load Bearing Plate, Ø60.3

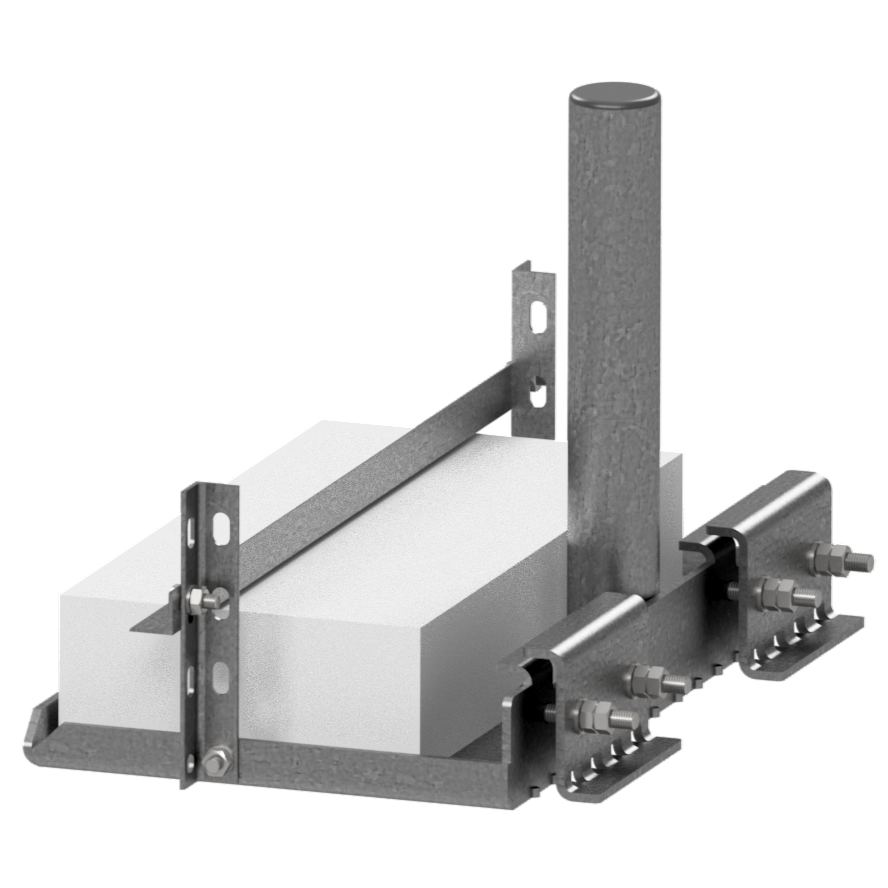

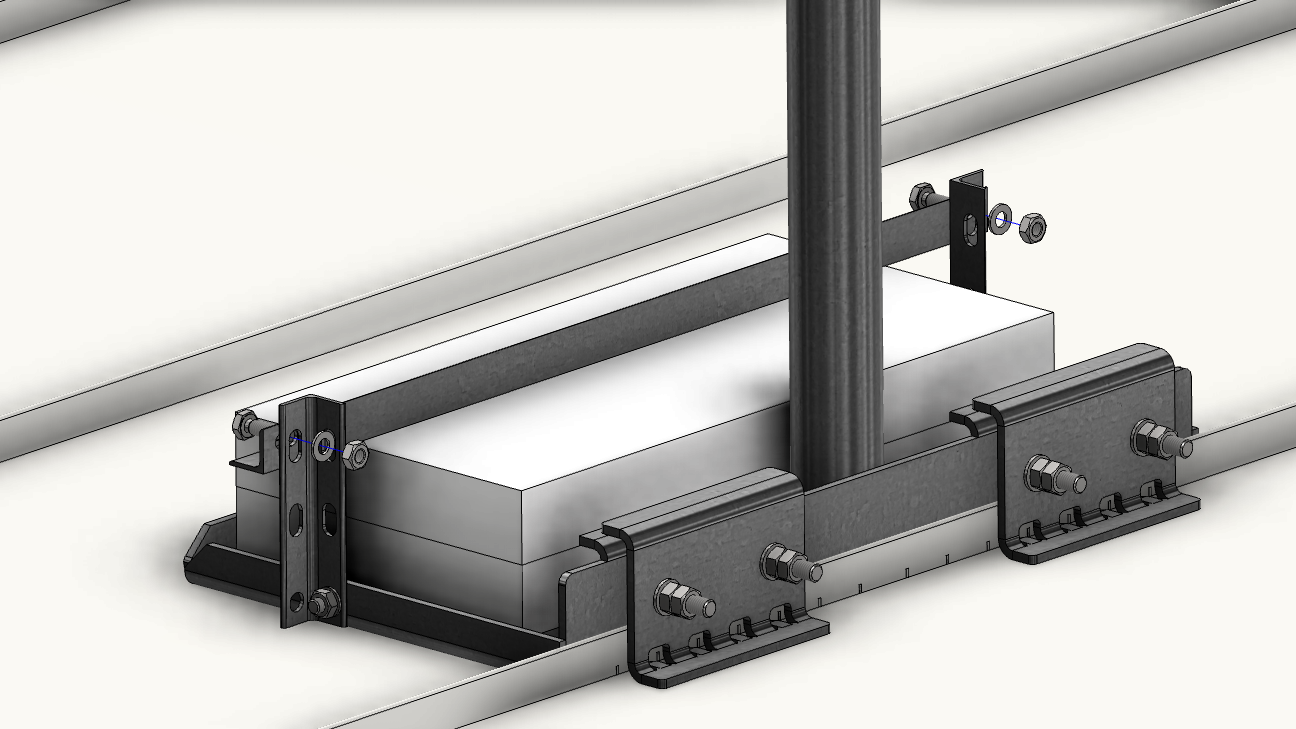

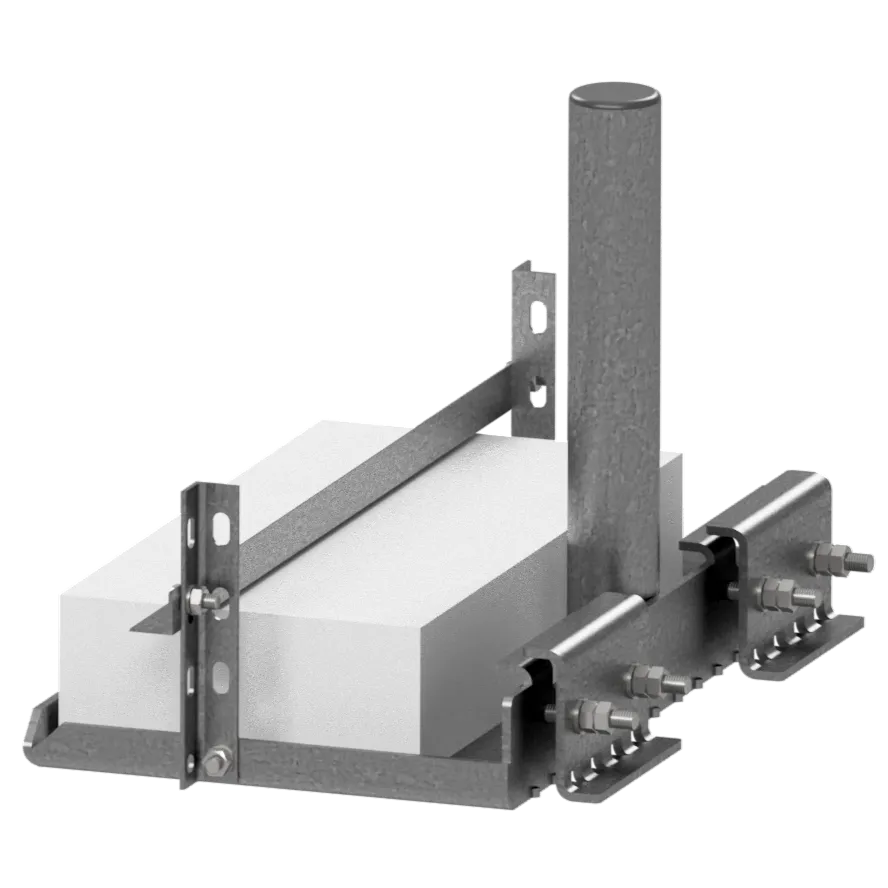

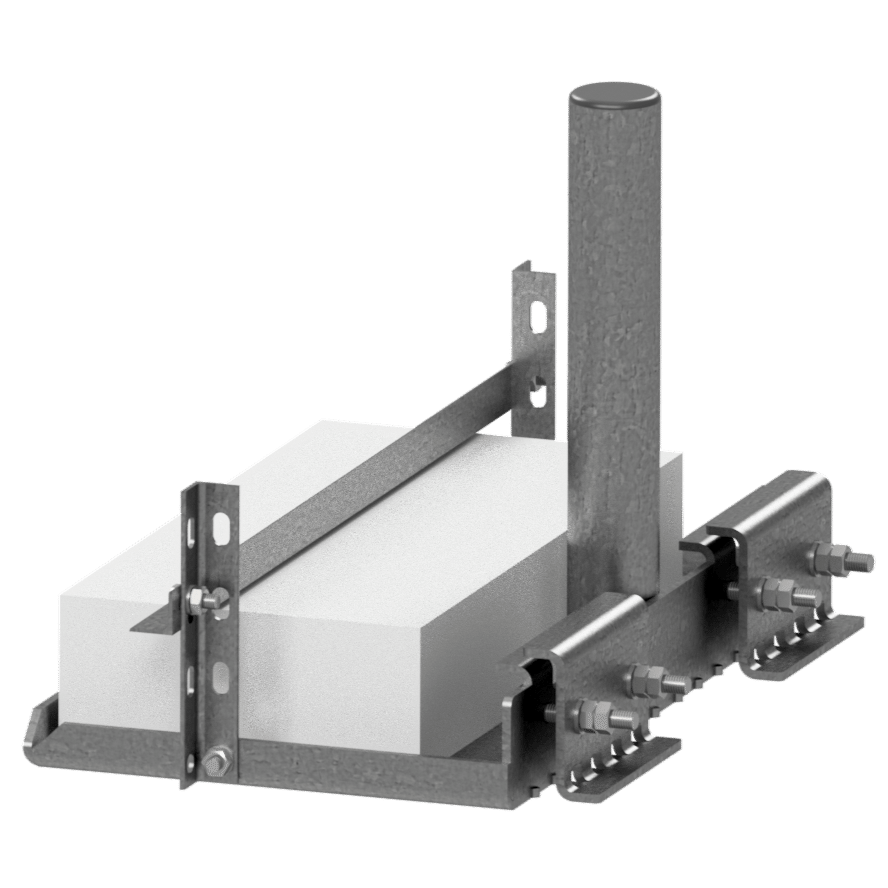

The load bearing plate is clamped directly onto the standing seams using non-penetrating seam clamps, preserving the integrity of the roofing system. The design accommodates variable seam thickness. Up to three concrete blocks can be applied to the plate to counteract wind uplift forces, ensuring system stability without the need for roof penetration (concrete blocks are not included).

The load bearing foot plate is fabricated from S355 structural steel with a hot-dip galvanized (HDG) finish for enhanced corrosion resistance and durability in outdoor environments. Designed specifically for use on standing seam roofs, the foot plate provides a secure anchoring point for rooftop platforms and structures.

This solution is ideal for applications requiring reliable load distribution and weather-resistant performance on metal standing seam roofs.
