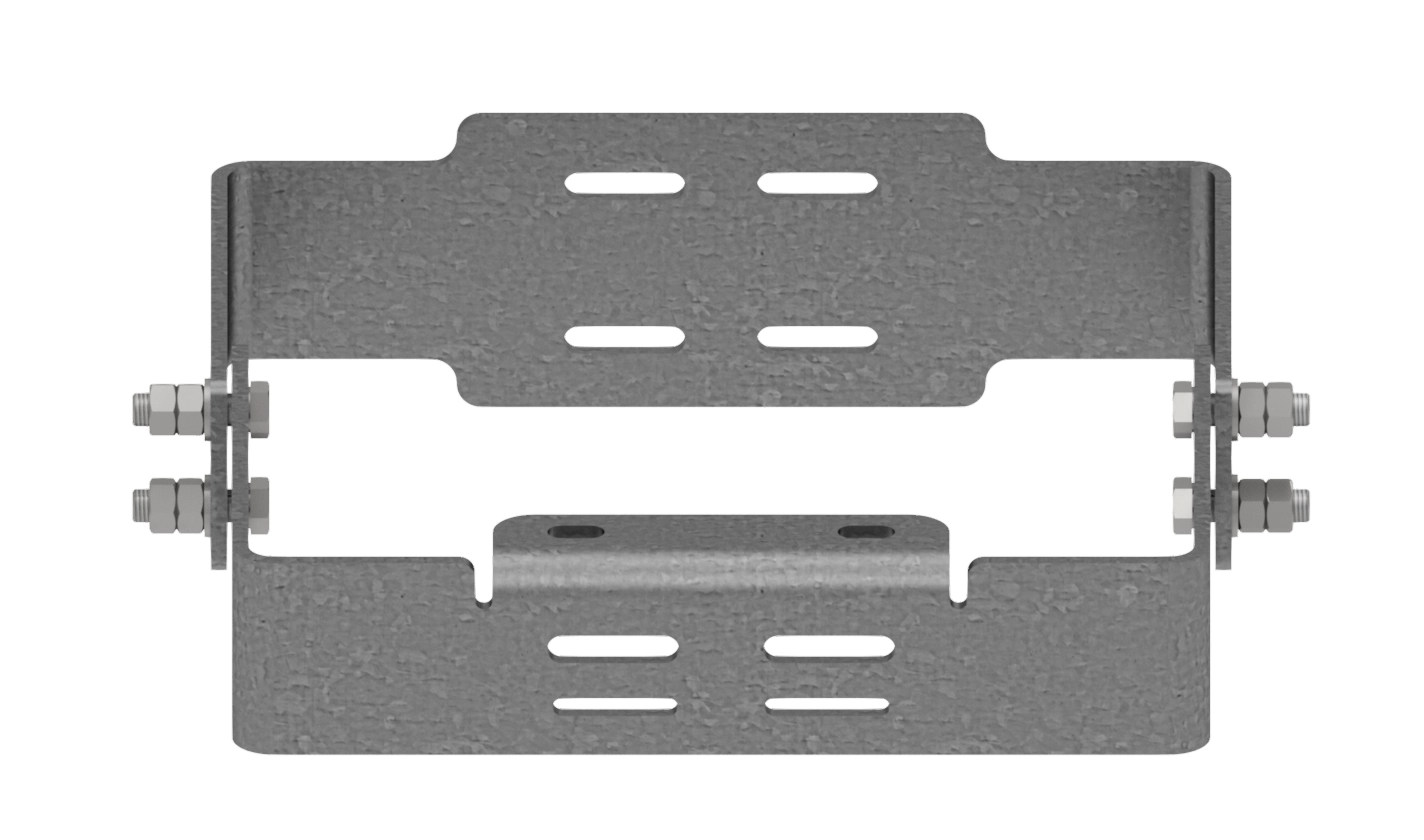

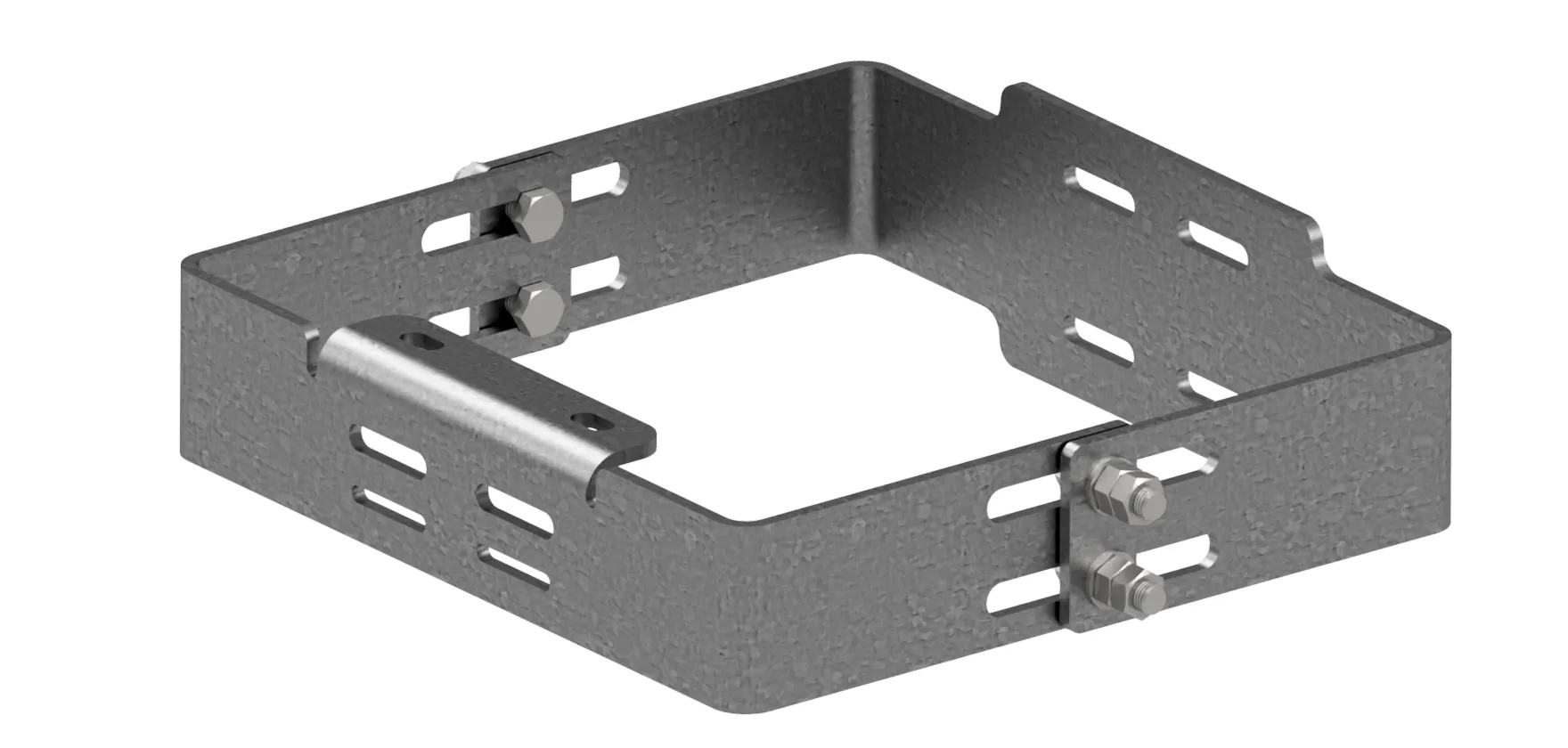

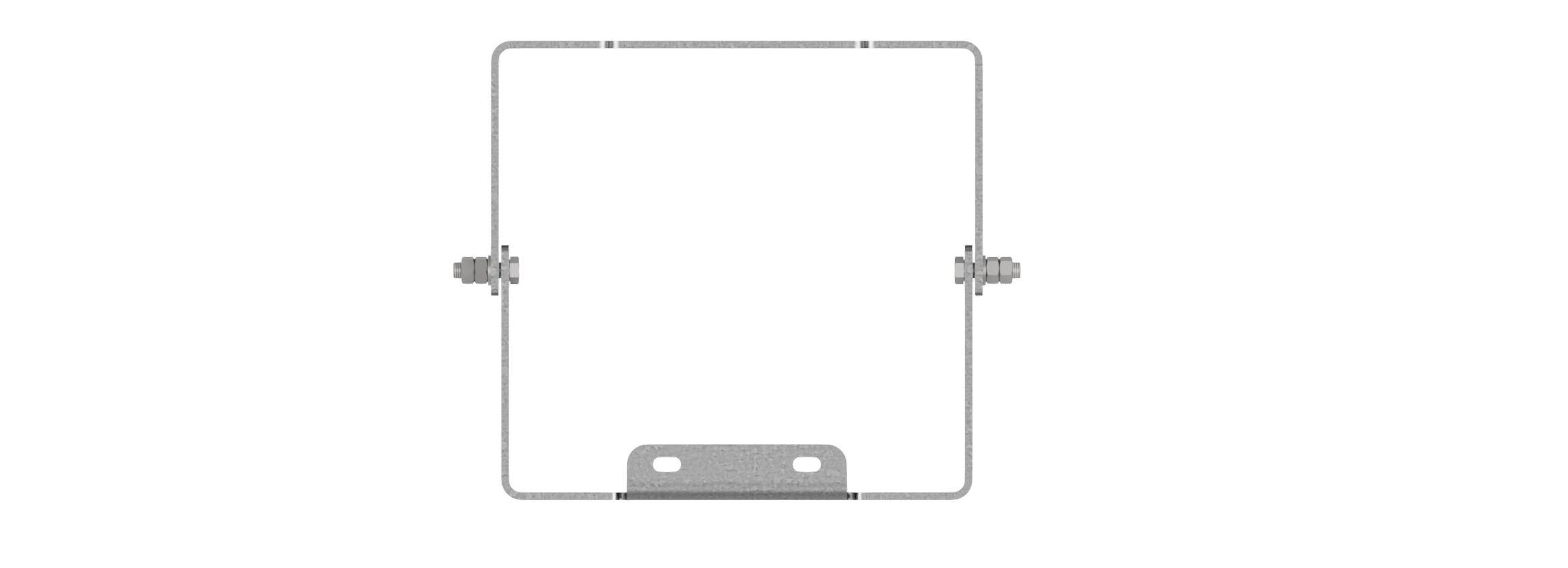

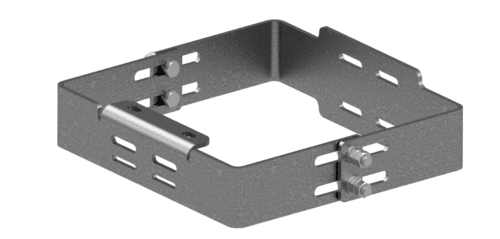

ES-BRACKET Tiltable Antenna Bracket, ERICSSON RRU, Flexible Offset 330mm-450mm, Ø25-Ø90
SKU: ES-BRACKET

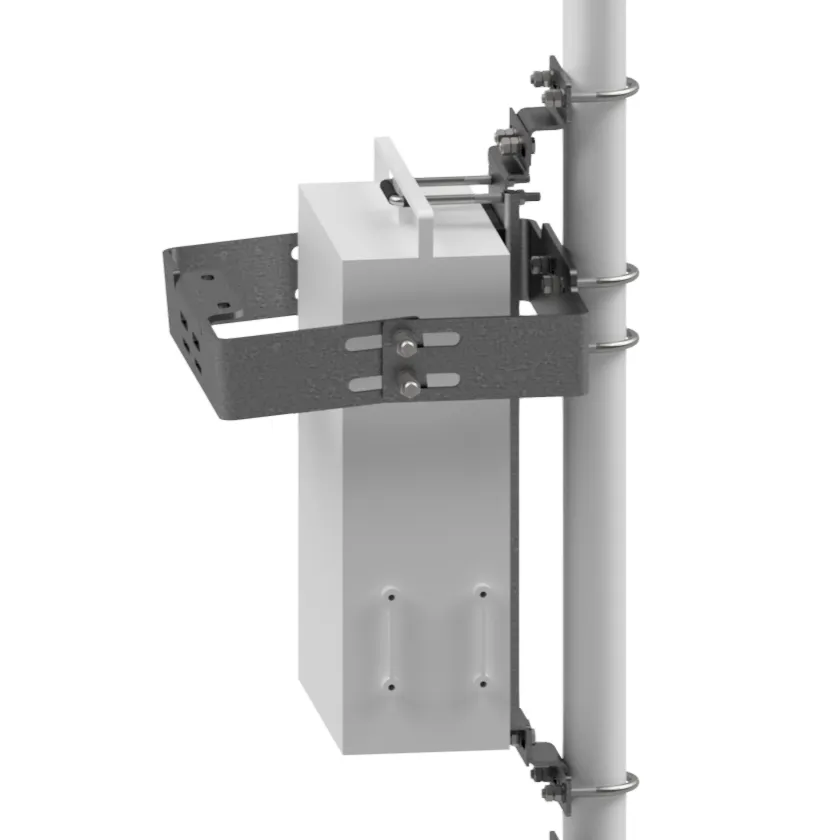

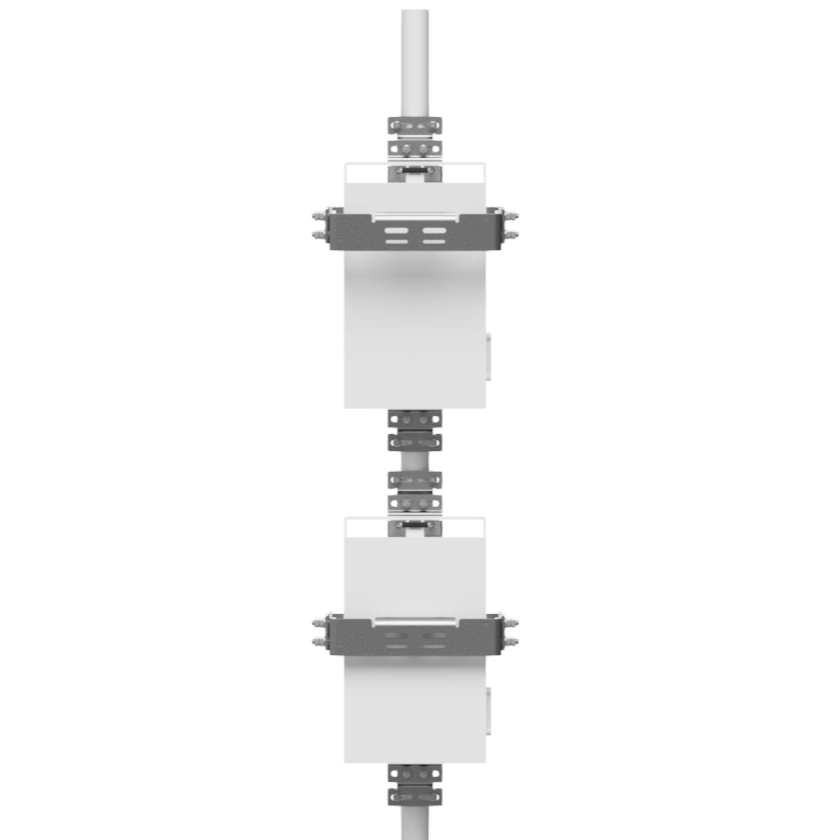

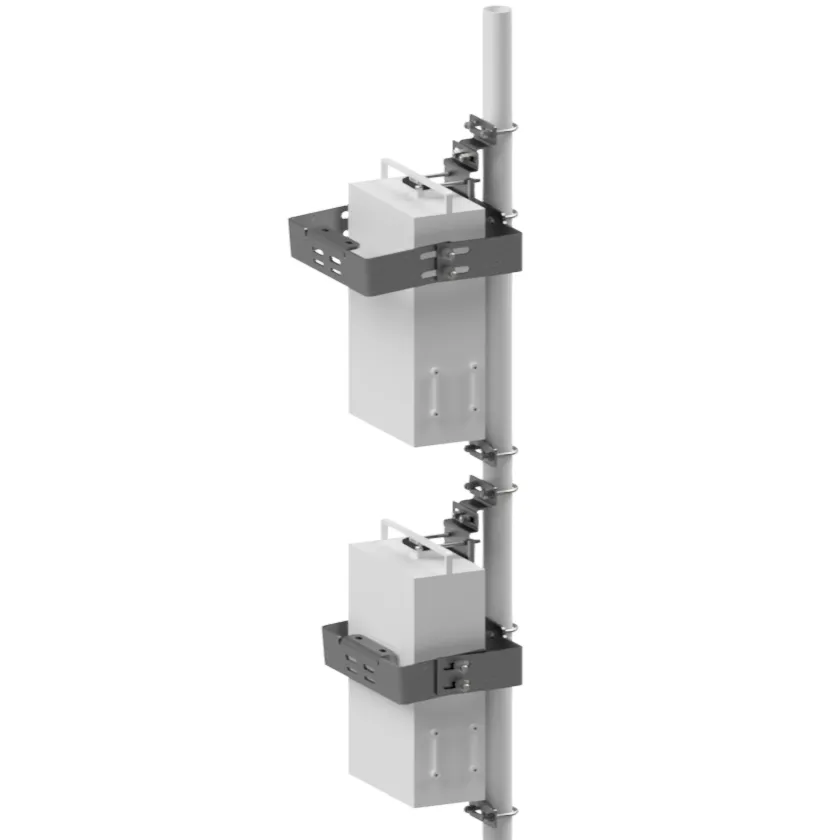

The ES-BRACKET is a specialized solution for mounting antennas in telecommunication towers. With its sturdiness, flexible offset, and tilt capabilities, it allows for secure and precise antenna positioning while saving valuable space. The bracket’s compatibility with pipe diameters ranging from Ø25mm to Ø90mm ensures easy installation in various tower configurations. By enabling the mounting of Ericsson radios (RRU) behind the antennas, the ES-BRACKET maximizes space utilization and streamlines network deployments.
The ES-BRACKET also includes two radio adapters that will be needed when used in combination with our radio brackets such as RR-18X-ERM or RR-18X-44466-ERM.
With its secure and durable S355 HDG steel and straightforward installation process, the ES-BRACKET is a convenient choice for efficient and reliable antenna and radio integration in telecommunication towers.
Choose the correct pipe diameter range below for the u-bolts.
