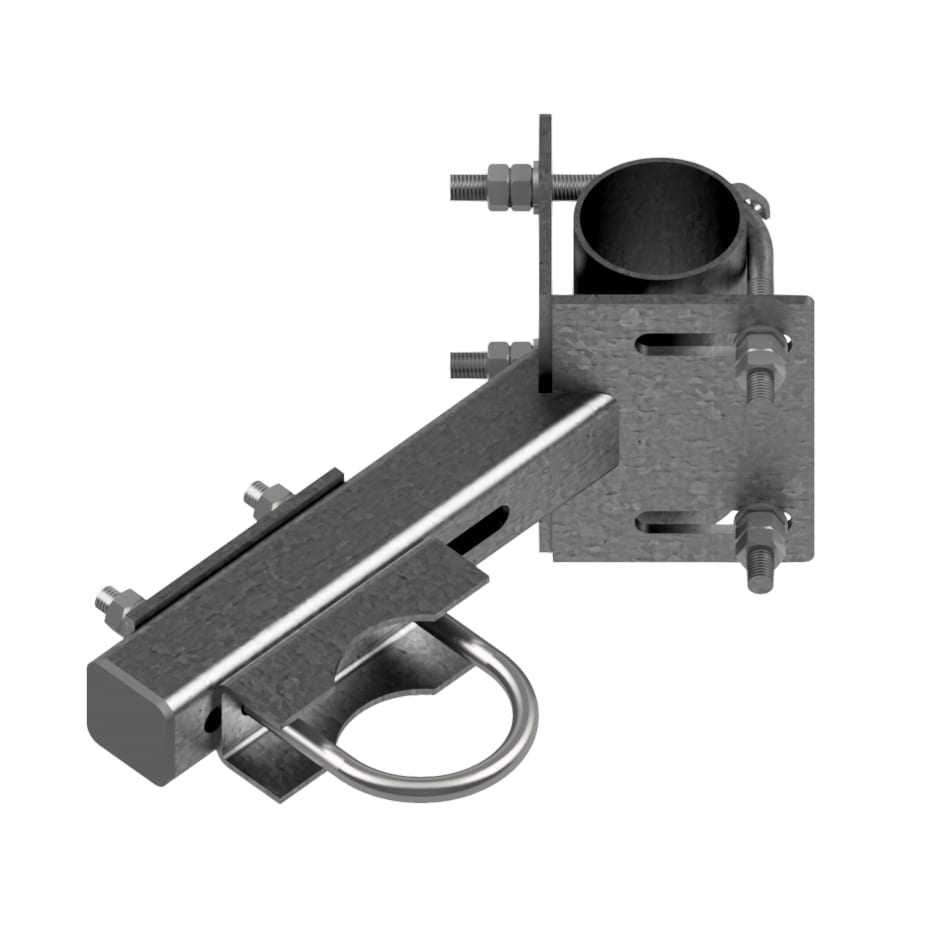

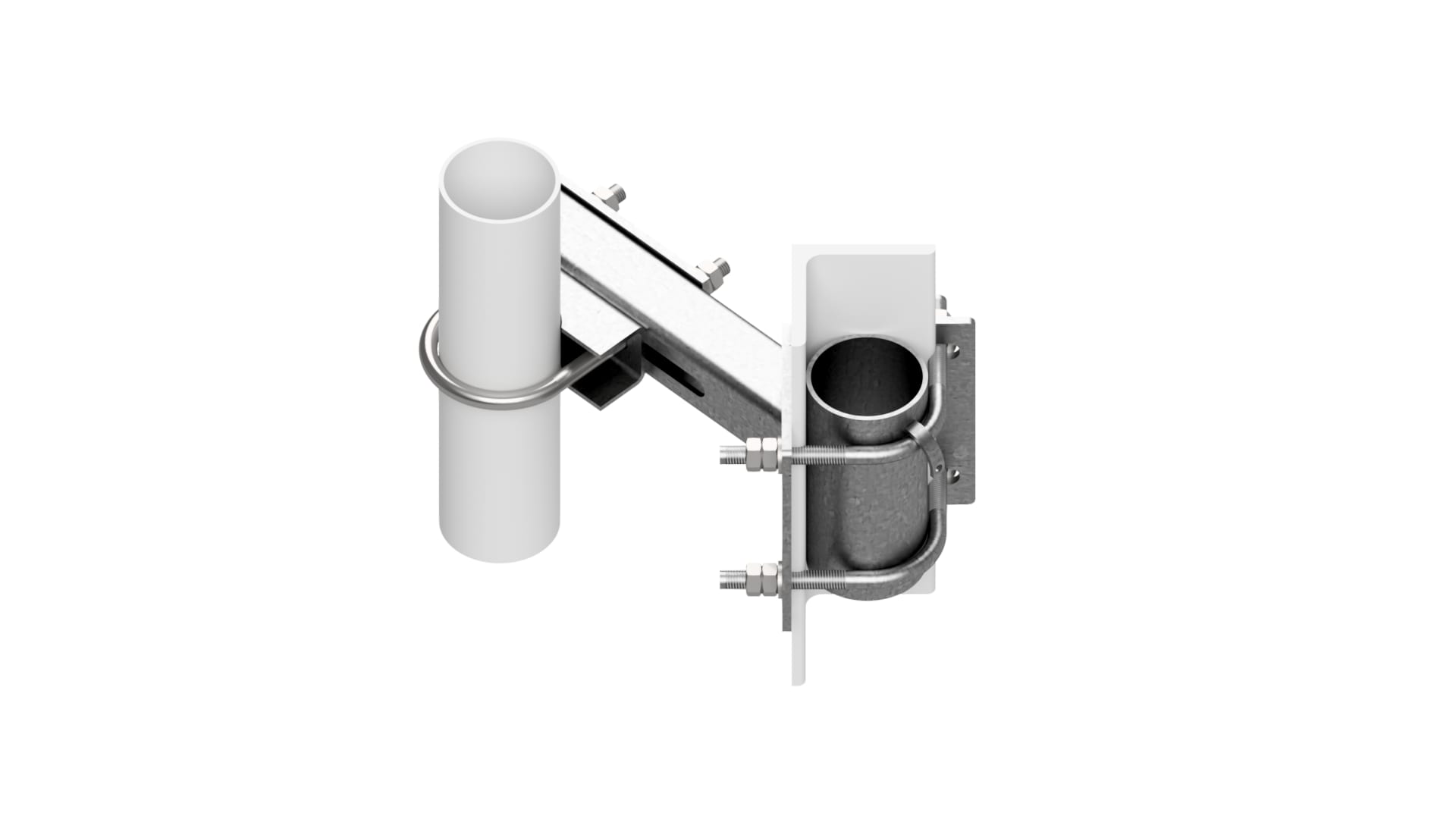

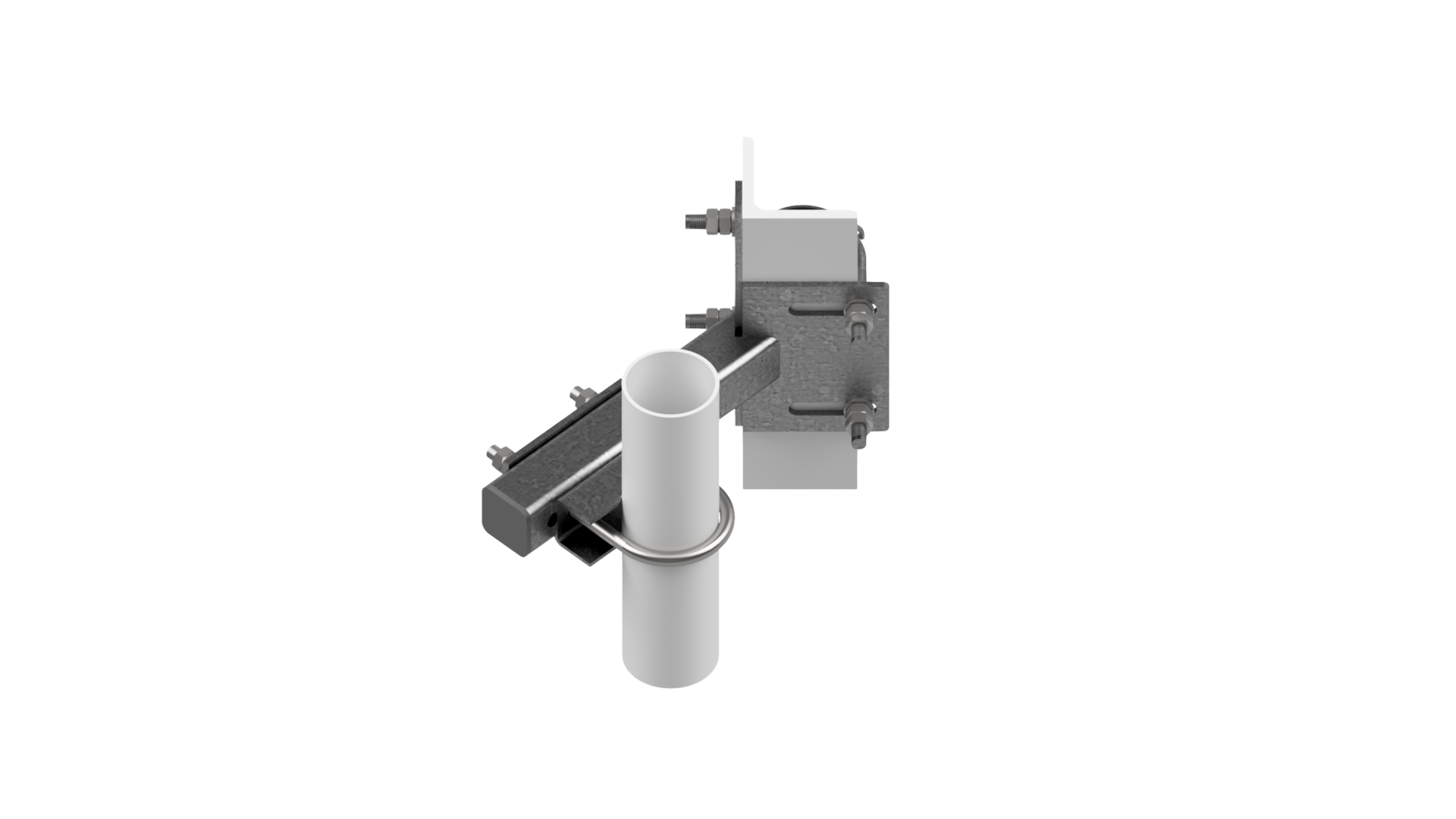

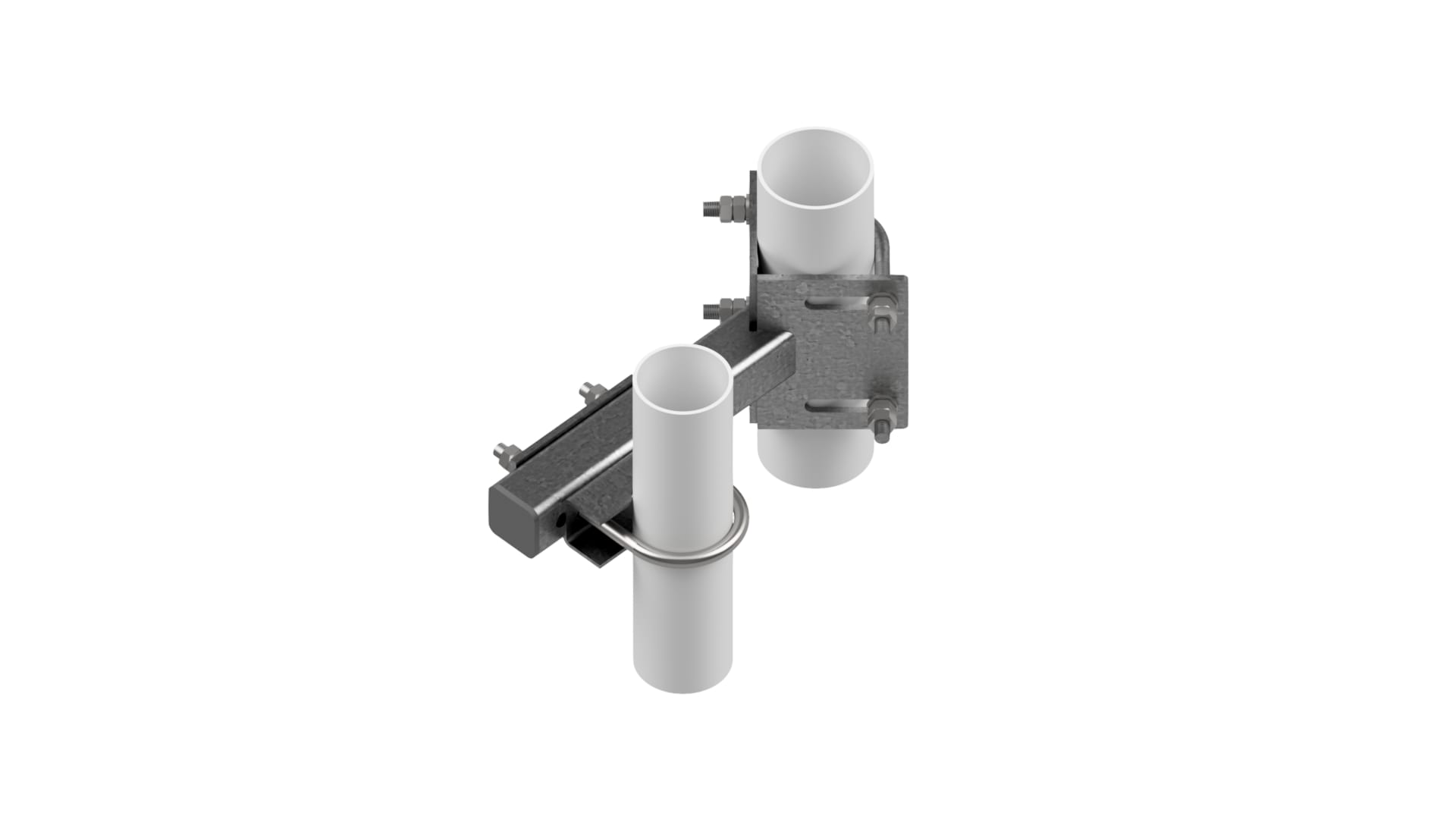

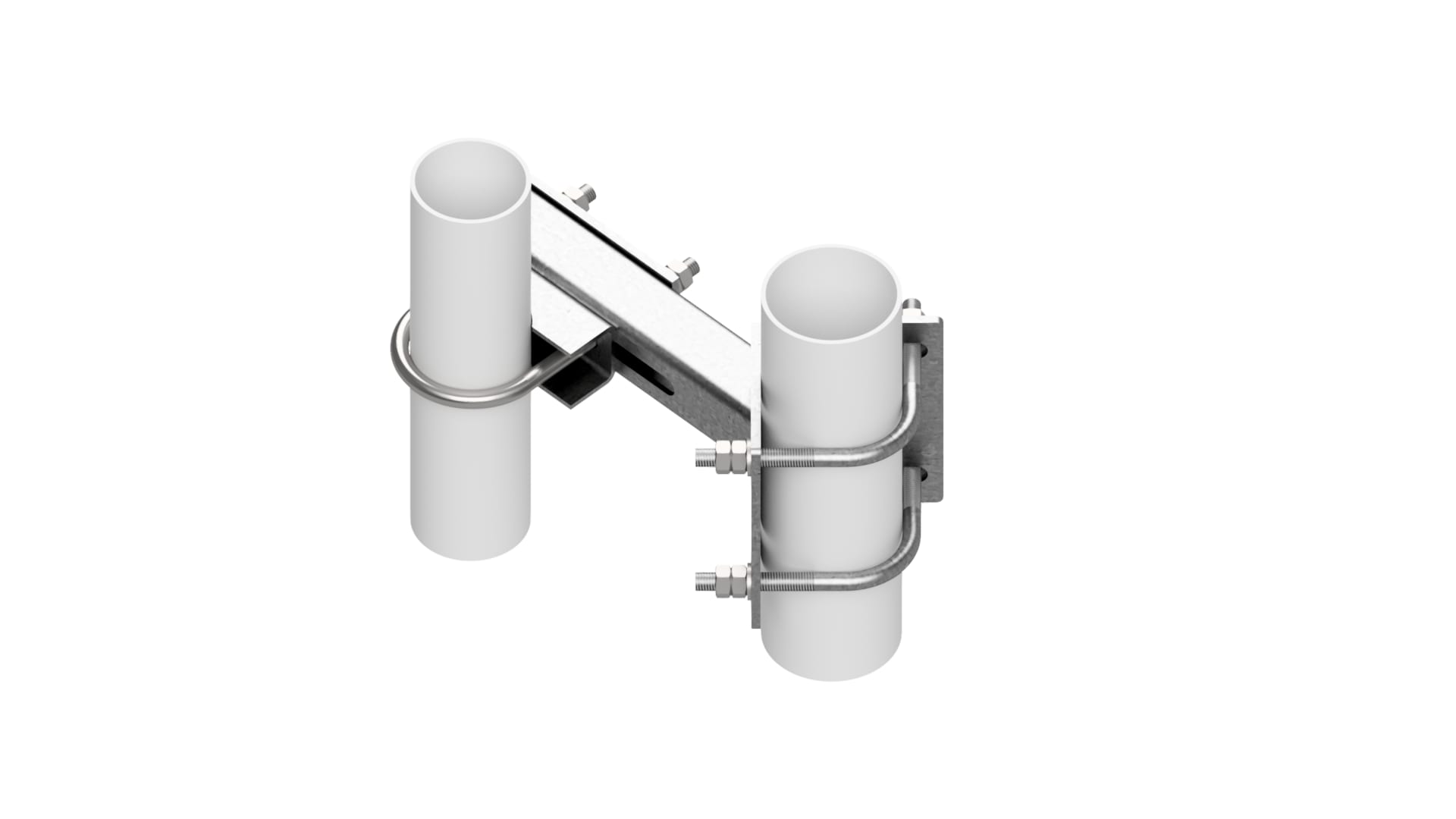

D165 Tower mount Ø50-Ø76 / L50-L90, L=275, for antenna pipe Ø76, slotted holes

D16X tower mounts are engineered for superior durability and versatility. Crafted from robust S355 steel and fortified with a high-quality Hot-Dip Galvanized (HDG) surface coating, the D16X series ensures longevity in diverse environmental conditions.

Tailored to accommodate various tower types and leg dimensions, the D16X series is available in multiple sizes, providing a customized solution for your specific application. The design caters to both L-profiles and round profiles, offering seamless integration into a wide range of tower configurations.

We are experiencing an temporary issue with D165 where it is difficult to mount the tower bracket to Ø90 tower legs. Please use D166 while the issue is fixed.

With different offsets – 225mm to 600mm – D16X allows for precise customization based on project requirements. This flexibility extends to the HUP, featuring a pre-installed attachment mechanism at the end to mount Ø76 pipes for antenna installation. The flexible attachment is engineered to counter tower angles effectively.
