D142 Monopole Bracket for Ø76 pipes, Ø150-Ø250

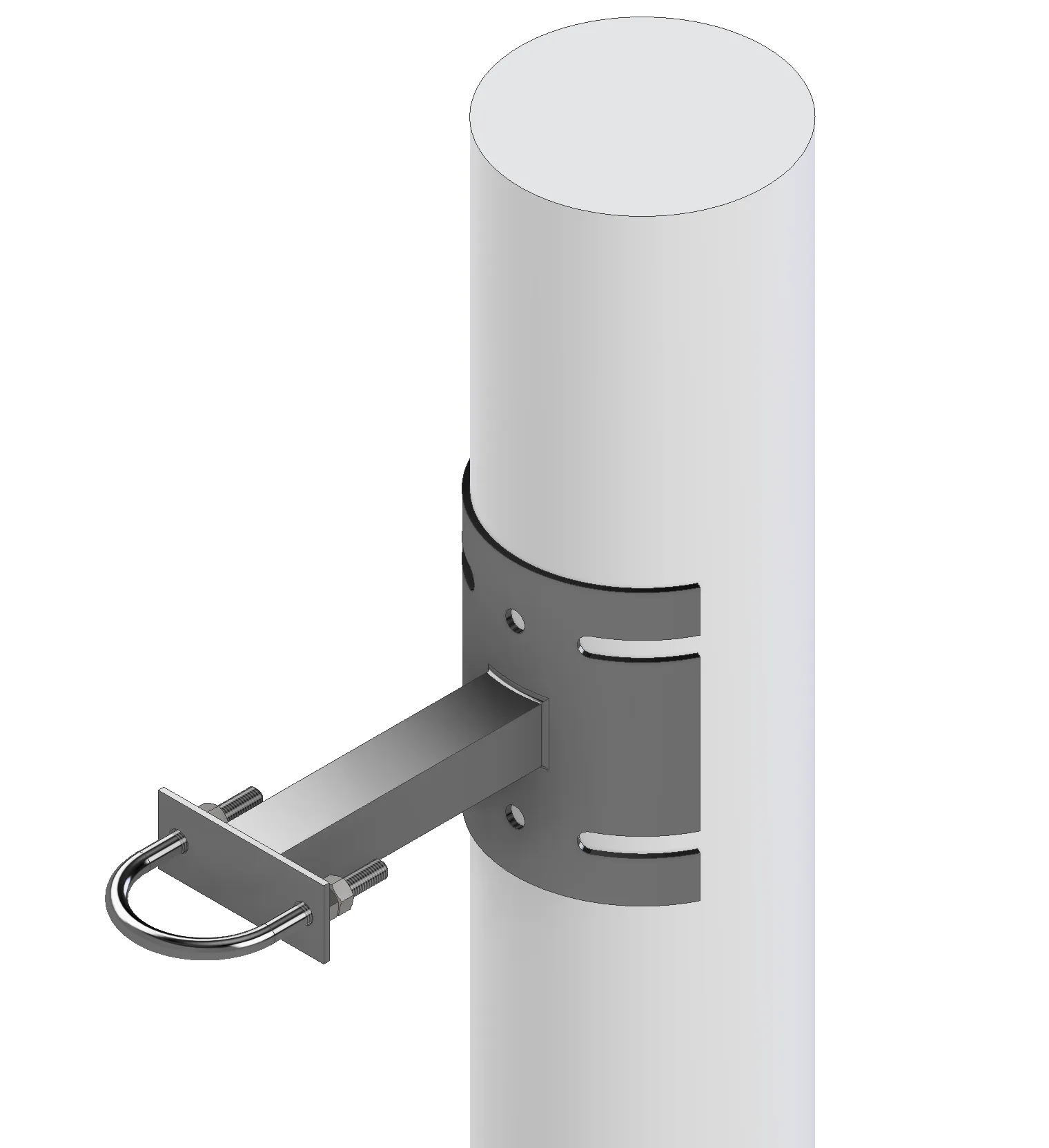

D142 is a product made from S355 HDG (Hot-Dip Galvanized) steel, designed to be mounted on monopoles with a diameter range of Ø150mm-Ø250mm. The product is attached to the monopole using 4pcs of M12 screws (either partially or through all). This allows for a quick and secure installation, minimizing installation time and effort.

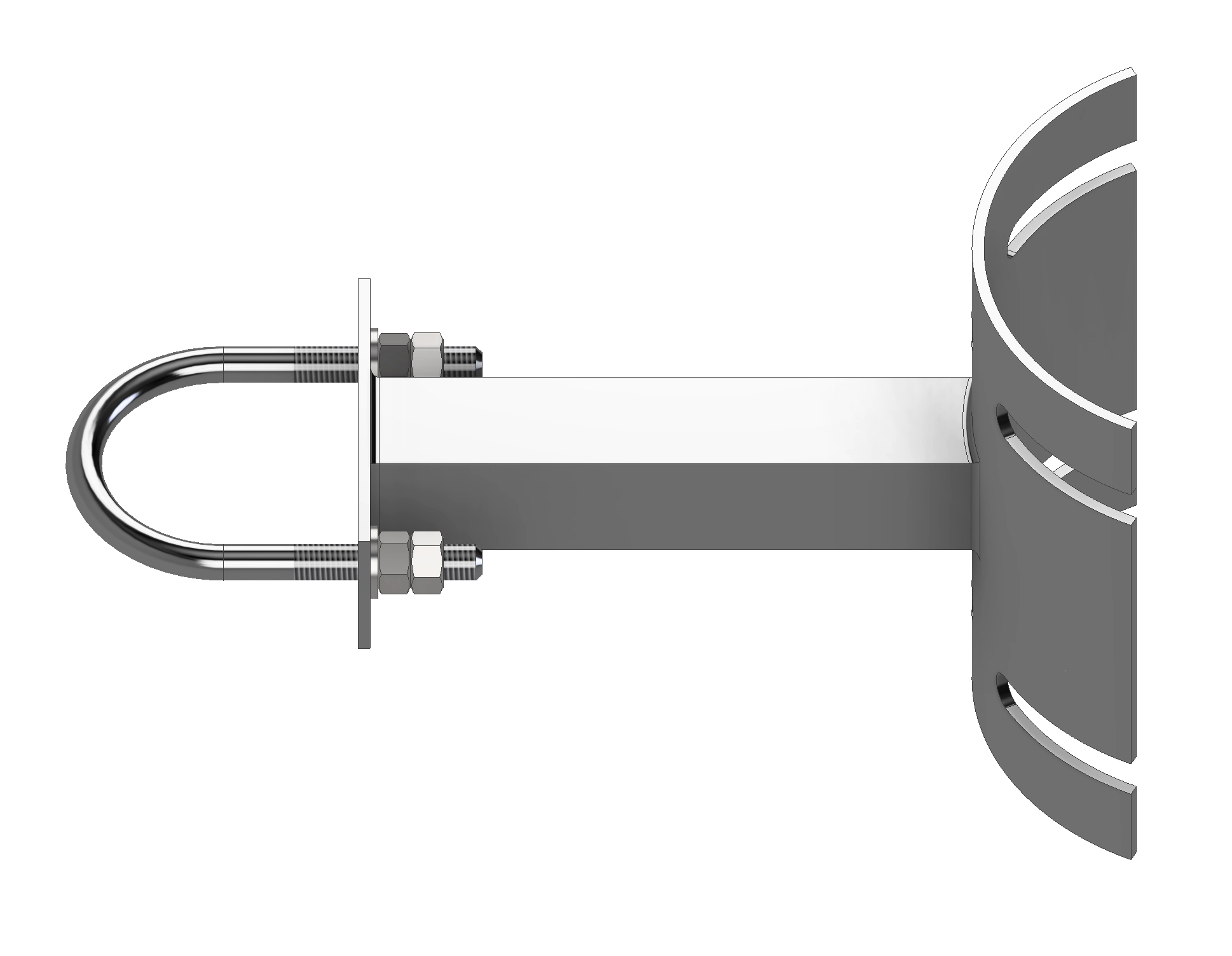

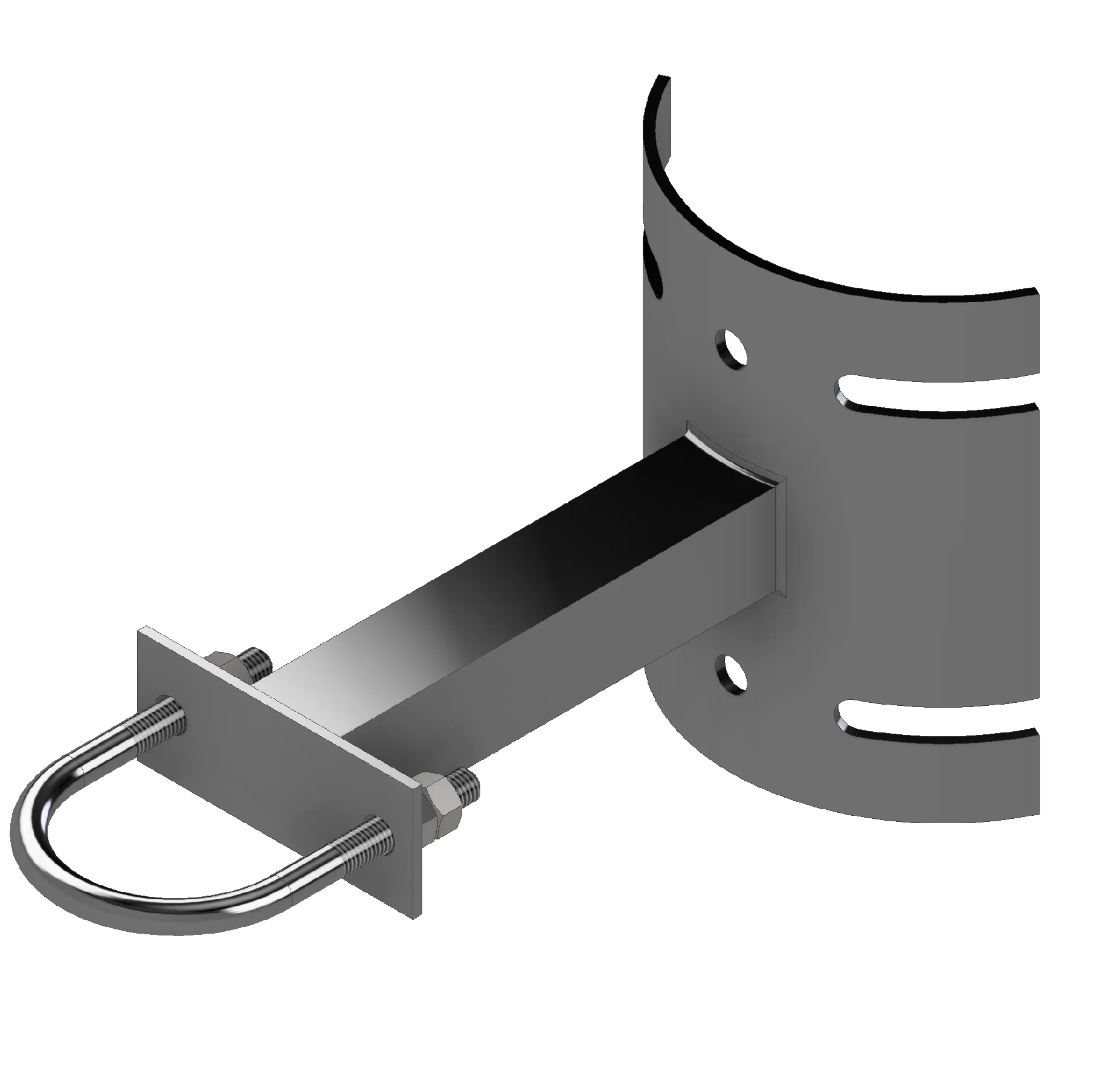

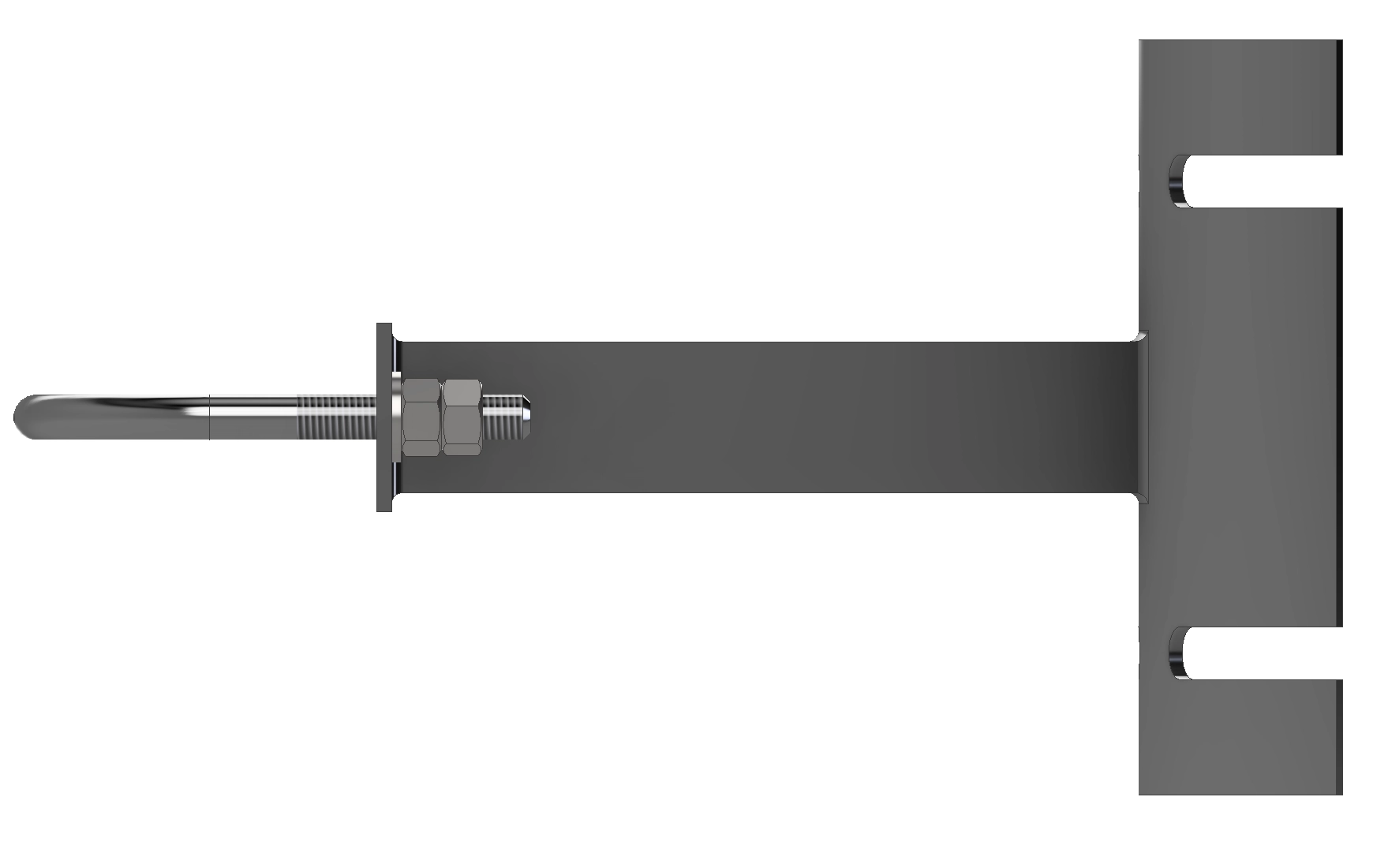

The product features a 200mm offset from the monopole. With an Ø76 u-bolt at the end, it can be used to attach a Ø76 steel pipe. This feature provides a versatile solution for mounting equipment, such as antennas or cameras, on the monopole.

Overall, the D142 offers a versatile and reliable solution for mounting equipment on monopoles, providing a strong and durable platform for equipment to be installed. Its high-quality construction and easy installation make it an excellent choice for a range of applications, including telecom, surveillance, and lighting.

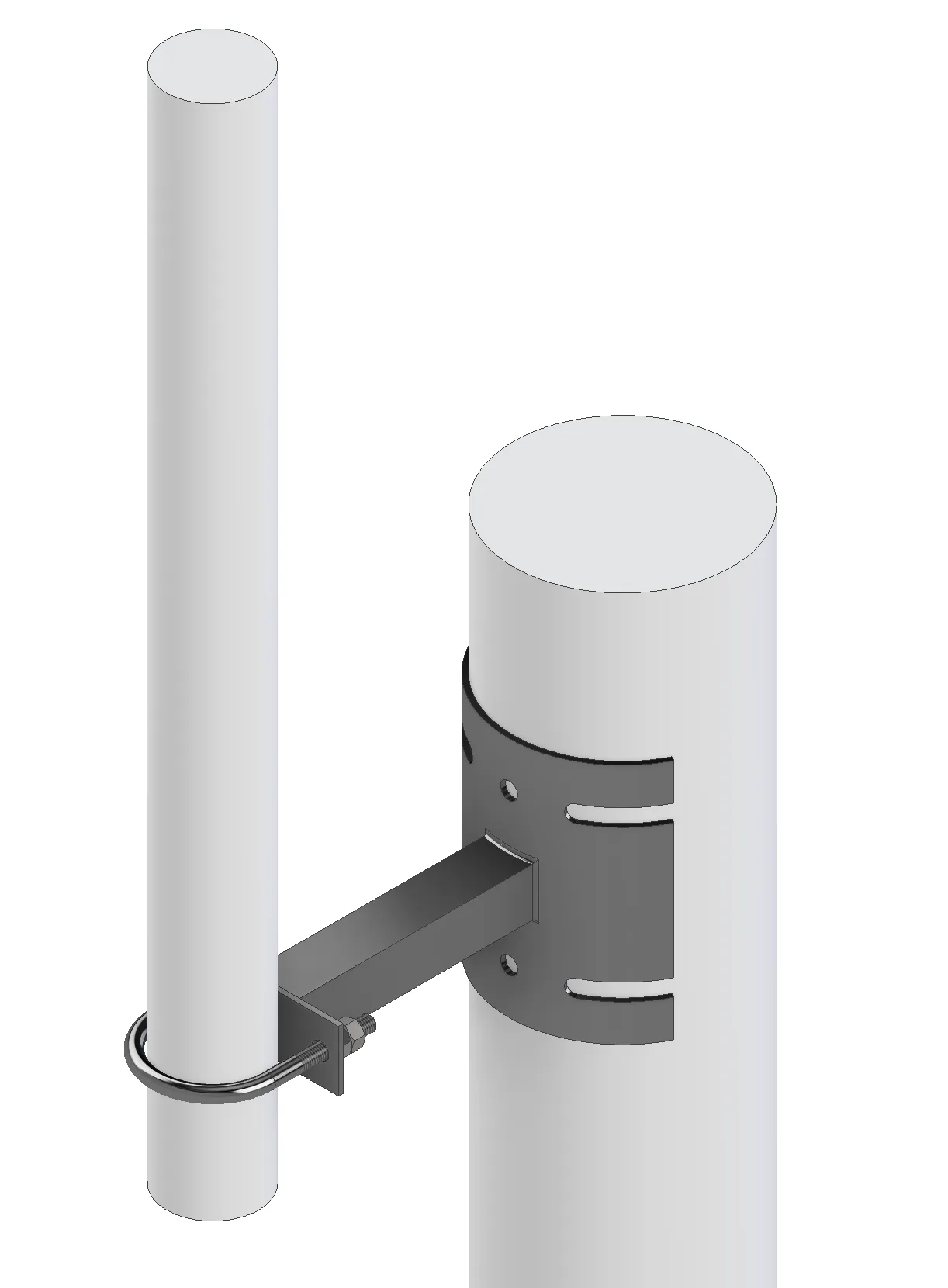

2pcs of D142 is needed to securely attach a Ø76 steel pipe to the monopole.
(M12 screws are not included.)
